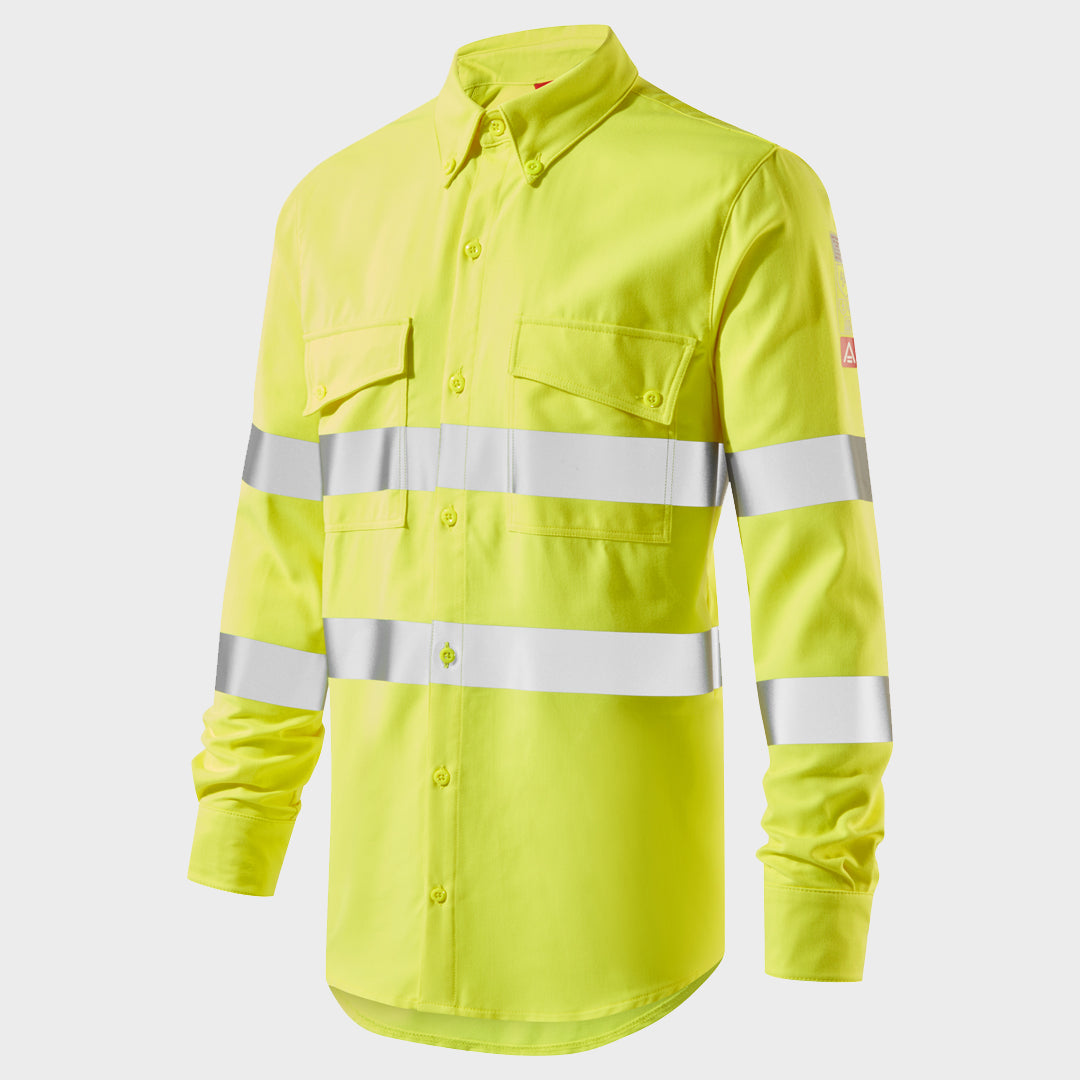

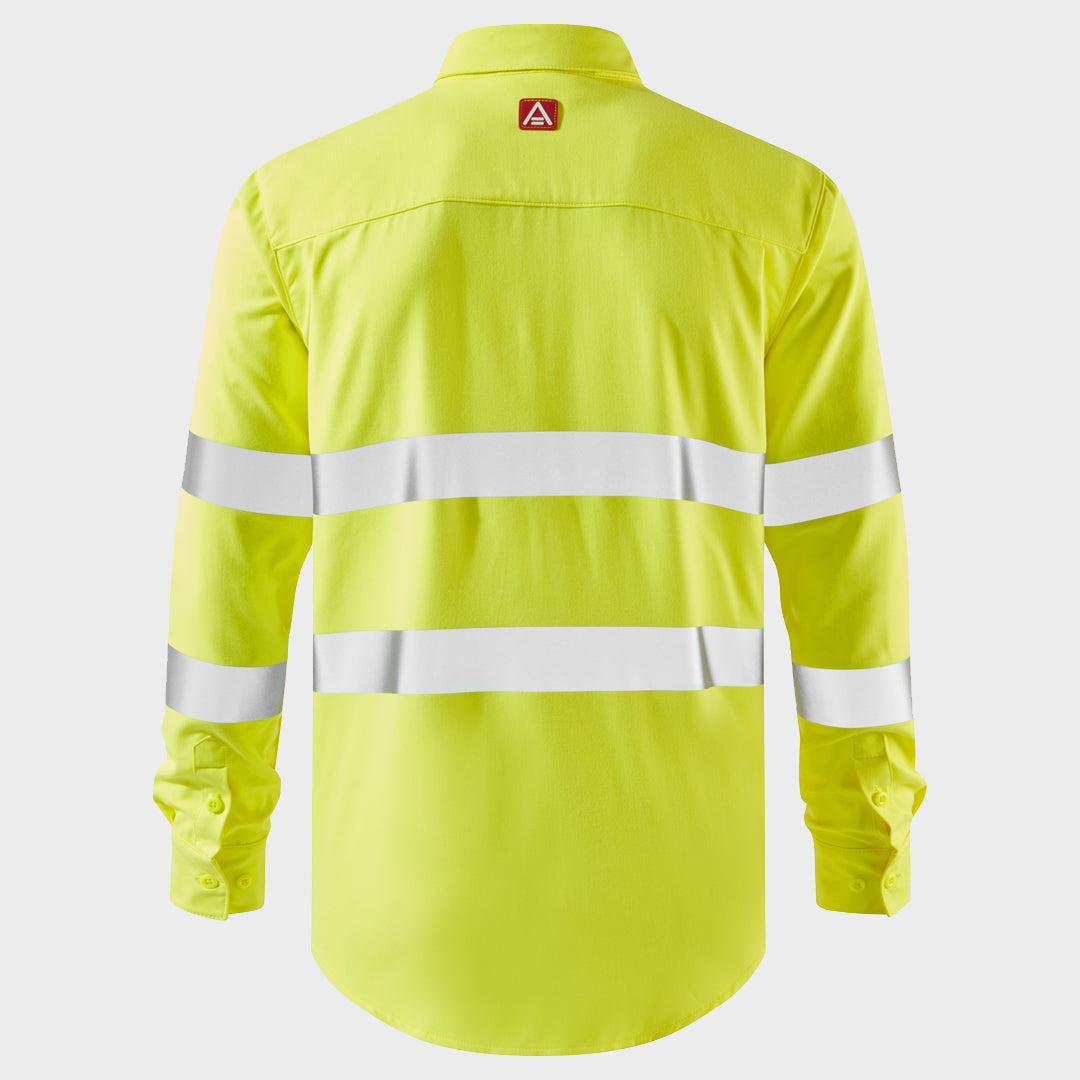

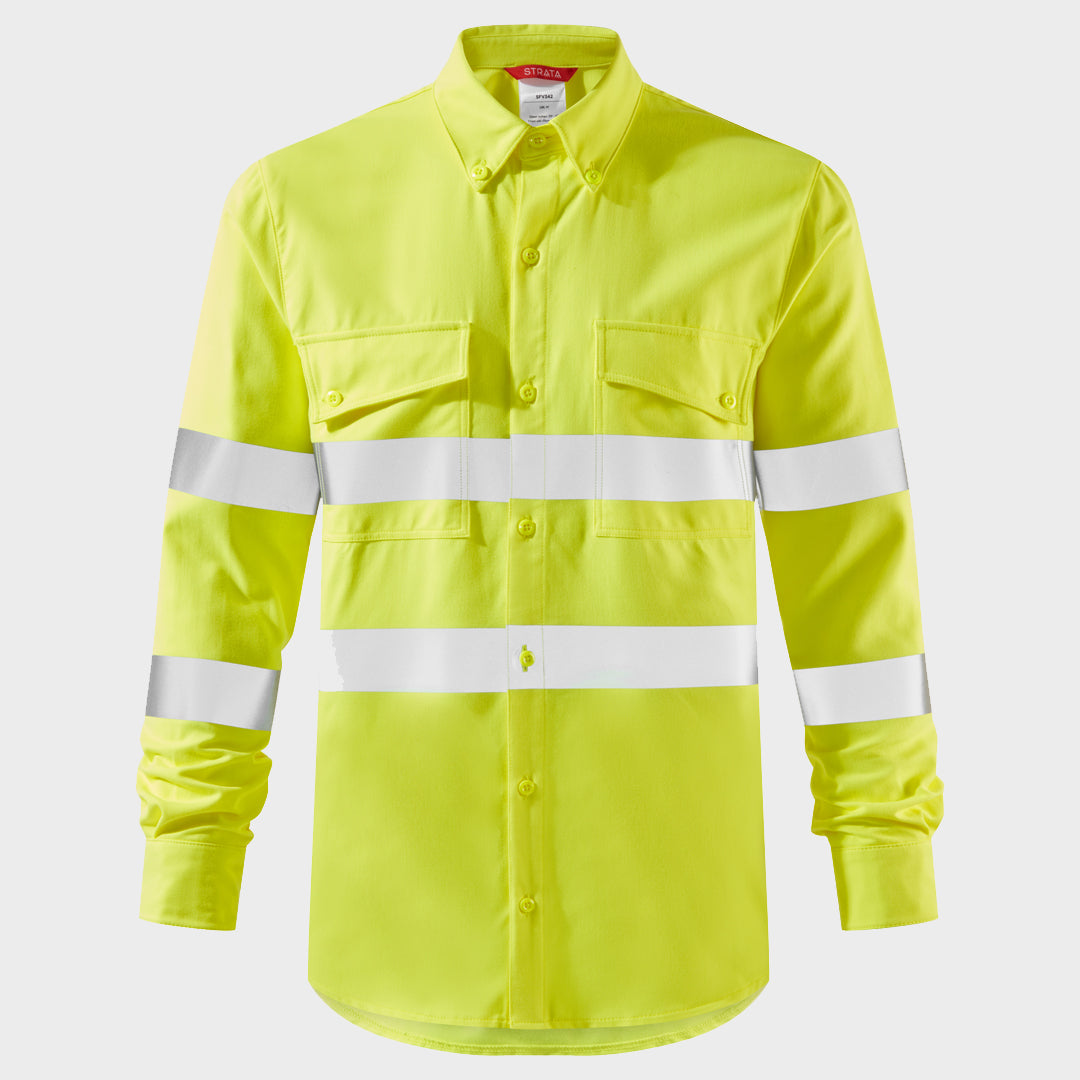

STRATA® Arc Hi-Viz Shirt (CL.1/ARC2/8.2CAL/CM²)
Size
Exceptional combination of protection, style and comfort. The STRATA® Arc Hi-Viz Shirt is Inherent, Fire Retardant, Anti-Static, Hi-Visibility and Arc Protective designed with engineers and manager in mind. The shirt provides a corporate look while ensuring you stay protected from an Arc Flash.
100% Inherent ARC FR Protection
The FR protection is woven into the fabric meaning it is permanent. No matter how many times the garment is worn or washed, the protection level always remains. This results in peace of mind knowing all STRATA® garments will keep engineers safe for the life of the garment and it saves you money reducing the cost per use by not having to keep replacing garments after their chemical protection is washed out.
Standards Badge
External transfer badge displaying the garments Standards and Arc cal rating
Adjustable Cuffs
Allows the wearer to tighten or release the cuff fit over underlayers and against the weather elements.
Hi-Visibility Reflective Banding
Applied to strata garments to increase a person's visibility and therefore prevent accidents caused by personnel not being seen.
Double Chest Pockets
Patch pocket with flap closure giving multi-functional storage possibilities for the wearer.
NFPA70E Compliant
This garment is NFPA 70E compliant, ensuring it adheres to the safety standards established by the National Fire Protection Association for protecting engineers against electrical hazards. This designation signifies that the garment has undergone rigorous testing and meets the necessary criteria to minimise the risk of electric arc flash incidents in electrical work environments.
Meets NFPA 2112 Standard
This garment meets the NFPA 2112 standard, demonstrating its adherence to the National Fire Protection Association's guidelines for flame-resistant clothing. This garment is designed and constructed to provide effective protection against flash fire exposure.
ATPV = 8.2 cal/cm²; ELIM = 7.6 cal/cm² & APC = 1
Class 1 Category 2
100% Inherent
Composition
Inherent Fabric: 44% Modacrylic / 30% Cotton / 20% Polyamide FR / 5% Para-Aramid / 1% Anti-static
Weight: 190g/m² / 5.6oz
Standards
EN 61482-2:2020 ATPV = 8.2 cal/cm²; ELIM = 7.6 cal/cm² & APC = 1 (Arc Rating)
EN 1149-5:2018 (Electrostatic Discharge)
EN ISO 11612:2015 A1 A2 B1 C1 F1 (Heat & Limited Flame Spread)
EN ISO 13688:2013 (General Performance)
EN ISO 20471:2013+A1:2016 (Class 3 for sizes S upwards - Hi-Visibility)
NFPA70E Compliant
Meets NFPA 2112 Standard
