IEC 61482 Electric Arc Protection
Electric arc hazards pose significant risks to workers in various industries. To mitigate these risks, international standards have been established, such as the IEC 61482 series, which focuses on electric arc protection. This informative page will provide an overview of IEC 61482 and its two primary test methods: the Box Test Method (IEC 61482-1-2) and the Open Arc Test Method (IEC 61482-1-1).
IEC 61482-1-2: Box Test Method
The Box Test Method is designed to evaluate the performance of materials and garments intended to protect against the thermal effects of an electric arc. This test method assesses the fabric's ability to withstand and minimize burn injury when exposed to an electric arc.

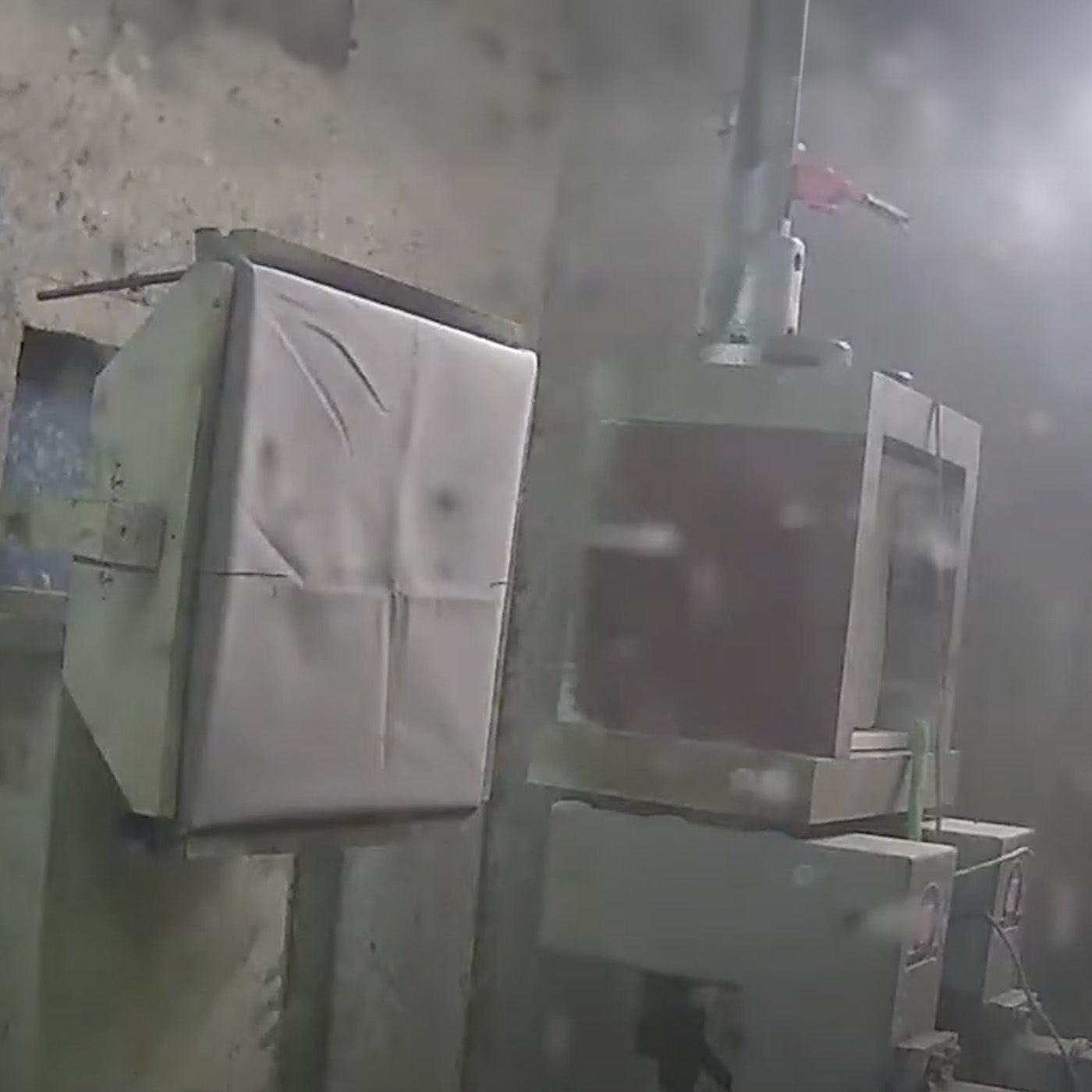

During the Box Test, a fabric sample is placed in a box-shaped chamber, and an electric arc is initiated inside the chamber. The fabric's response to the arc is observed, including factors such as heat transfer, flame spread, and afterflame time. The test measures the fabric's ability to limit the transfer of thermal energy and prevent injury to the wearer.
IEC 61482-1-2 provides guidelines for conducting the Box Test and specifies performance requirements for protective clothing, including the Arc Thermal Performance Value (ATPV) and the Breakopen Threshold Energy (EBT). These values indicate the level of protection offered by the fabric and help users select appropriate garments for specific arc flash hazards.
IEC 61482-1-1: Open Arc Test Method
The Open Arc Test Method is another critical component of IEC 61482. It focuses on the evaluation of materials and garments in terms of their ability to protect against the thermal effects of an electric arc produced by a specific fault current. This test method assesses the fabric's performance in scenarios where the electric arc is not contained within an enclosure.
During the Open Arc Test, fabric samples are exposed to a controlled electric arc generated by a fault current. The test evaluates parameters such as arc rating, heat transfer, and the fabric's resistance to ignition, melting, and dripping. The results help determine the fabric's ability to provide effective protection against arc flash incidents.
IEC 61482-1-1 outlines the requirements and procedures for conducting the Open Arc Test. It also provides performance classifications, such as the Arc Rating (ATPV or EBT) and the Incident Energy Exposure (IEE), to aid in the selection of appropriate protective clothing based on the specific electric arc hazards present.
IEC 61482 plays a crucial role in ensuring the safety of workers facing electric arc hazards. The Box Test Method (IEC 61482-1-2) assesses fabric performance within a controlled chamber, while the Open Arc Test Method (IEC 61482-1-1) evaluates materials and garments in scenarios with uncontained electric arcs. These test methods provide valuable insights into the protective capabilities of clothing and aid in the selection of appropriate protective gear for individuals working with live or potentially live electricity.
By adhering to the guidelines set forth in IEC 61482, employers and employees can make informed decisions about electric arc protection, thereby reducing the risk of injuries and promoting a safer work environment.
